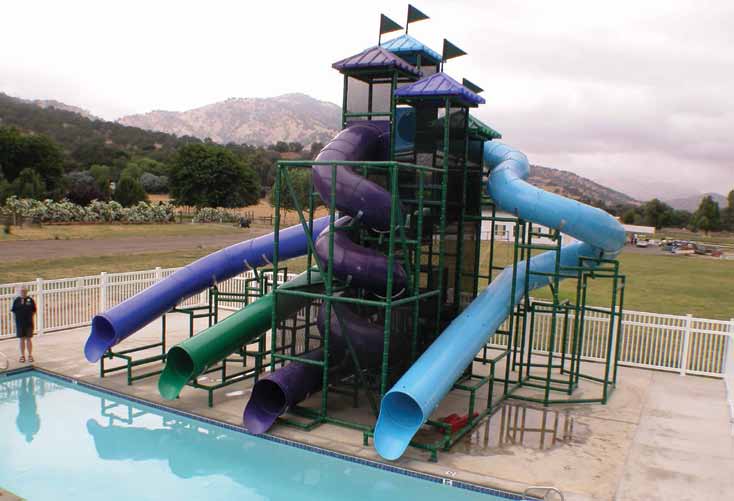

 Model PL307 25' Left Hook Flume 43' Center Hook Flume 48' Spiral Flume 65' Right Spiral Flume Actual Size 27'x27'x28.5'H Weight 9985 lbs. |
 Model PL308 43' Hook Flume 39' Spiral Flume 50' Left Spiral Flume Actual Size 27'x28'x24.5'H Weight 5925 lbs. |
|
  Item # 5754-0 Model # 103 18' Flume 6' Deck Height |
  Item # 5755-0 Model #104 |

|
|

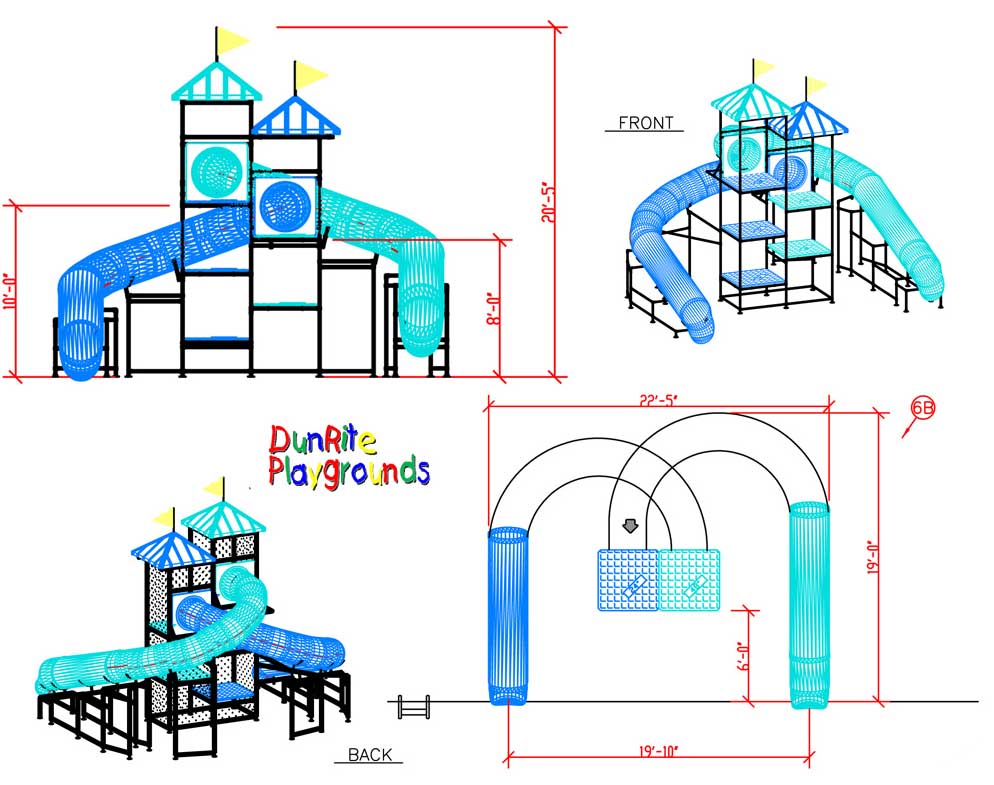

  Item # 5782-1 Model # 206 33' Flume (8' Deck Height) 36' Flume (10' Deck Height) |

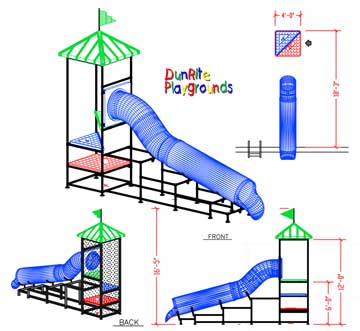

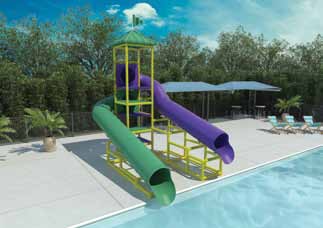

Item # 5758-0 Model # 107 24' Left Hook Flume (6' Deck Height) 25' Right Hook Flume (10' Deck Height) Actual Size 11'x19'x20.5'H |
||

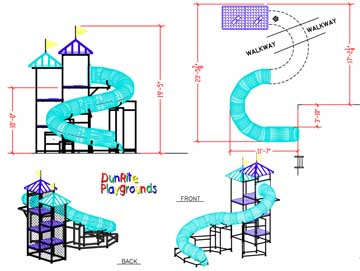

Item # 5780-0 Model #204 45' Flume 10' Deck Height |

|

|

|

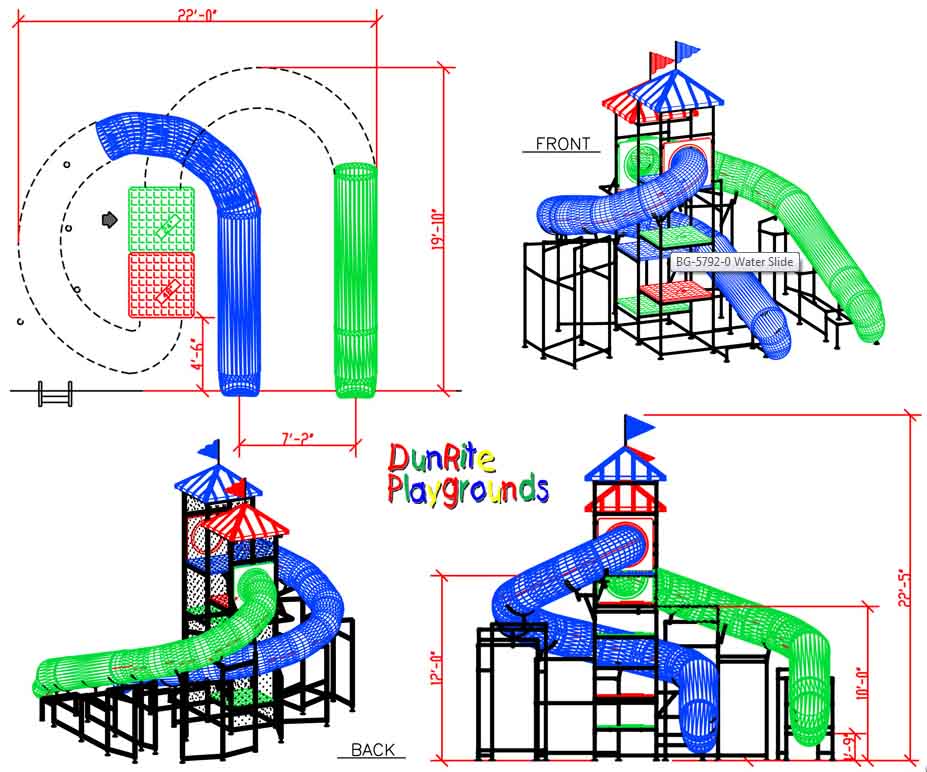

  Item # 5792-0 Model # 304 43' Flume (10' Deck Height) 48' Flume (16' Deck Height) |
 Item # 5792-1 |
|

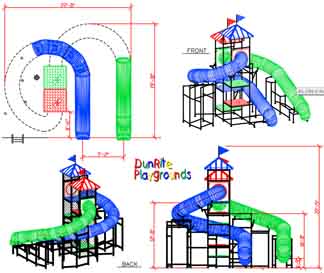

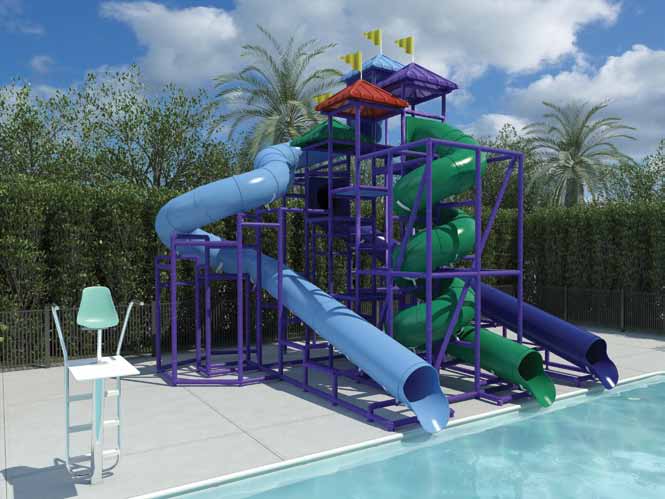

  Item # 5794-0 Model # 306 |
 43' Right Hook Flume (12' Deck Height) 48' Center Spiral Flume (6' Deck Height) 65' Left Spiral Flume (18' Deck Height) Actual Size 26' x 26' 28.5'H |
||

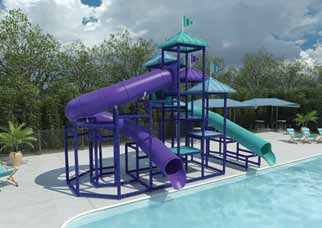

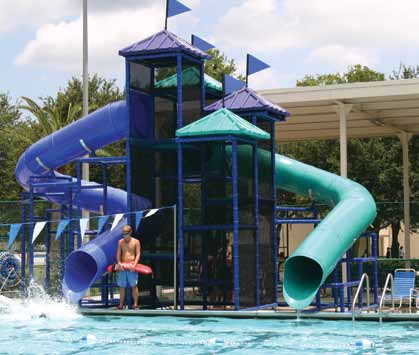

 Item # 6455-0 Model # 303 33' Flume (10' Deck Height) 46' Flume (12' Deck Height)
19'x28'23'H Weight 4450 lbs.
|
|||
Item # 6305-2 Model # 205 46' Flume 12' Deck Height |
|||
 Item #6368-2 |

Model #108 33' Flume 8' Deck Height |

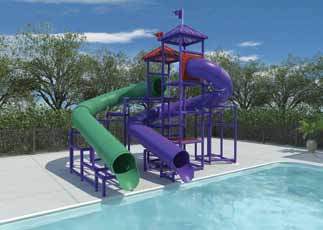

Model # 207 35' Left Hook Flume (10' Deck Height) 46' Right Spiral Flume (12' Deck Height) |
|

|

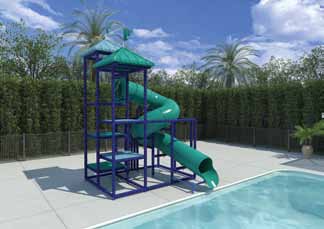

 Item # 6412-0 Model #203 29' Spiral Flume 10' Deck Height
Actual Size: 12' x 12' x 20.5H |
||

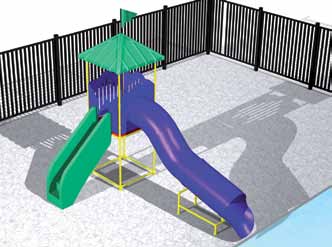

 Item # 6372-1 Model SI-1 12' Flume 5' Deck Height |

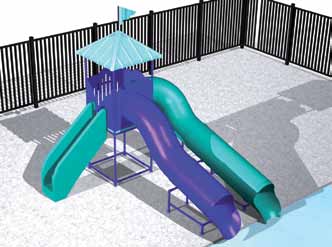

 Item #6396-0 Model SI-2 12' Flume 14' Flume 5' Deck Height |
 Item #6471-1 |
|
 Item # 6320-1 Model # 305 Two 49' Flumes 16' Deck Height |
|||

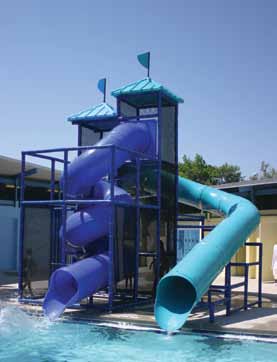

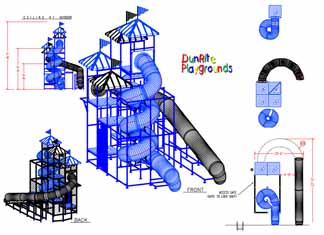

 Item # 5819-0 Model # 302 38' Flume (10' Deck Height) 39' Flume (12' Deck Height)
Actual Size 23'x15'x22'H Weight 4970 lbs.
|
|||
 |
 |
 |
|
 |
 |
|
|

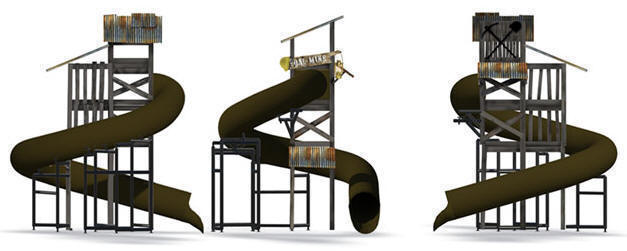

| Your Custom Design goes HERE | |||
 |
|||
Optimal site characteristics 1. Concrete deck around the pool. If you pool deck is a typical 4" minimum thickness concrete deck, our slides will easily mount on the deck. 2. 15 to 25 feet from the water’s edge to where the concrete ends (usually there is a fence). 3. 20 feet of linear length usable space along pool edge. 4. Federal regulations dictate a minimum 40" water depth where the slide flumes enter the pool (depths of 4 feet or greater are preferred). 5. Design adaptations available to provide flume entrances at corners and on peninsulas. 6. Electrical codes in some states dictate that our pipe structure be bonded (or ground) to some other pervasive metal structure around the pool. ( e.g. the rebar in the concrete ) Some clients have done this using #8 copper wire. Regardless, this is the owner’s responsibility. 7. A water volume of 15 to 20 gallons per minute, per flume is sufficient for most of our water slides. Larger flume may be more appropriate at 20-30 gallons per minute.
8. Regulations may vary by state, county or municipality. It is the pool owner's responsibility to understand and secure any required permits or licenses. Occasionally, a regulator will ask for additional engineering documentation. Wind, soil, structural analysis requirements are provided on a case per case basis for an additional charge.
|
|
Component Descriptions Pipe: Schedule 80 gauge, 1.9” OD anodized aluminum structural tubing. Fittings: Structural Speed-Rail fittings (manufactured by Hollander of Cincinnati, OH) All Hollander fittings are made of high tensile strength, aluminum/magnesium alloy that is highly resistant to corrosion and will not rust. The physical strength characteristics are comparable with malleable iron at one-third the weight. Plastic Components: All flumes and decks are made of rotationally molded linear low-density polyethylene. The material is smooth and hygienic. UV inhibitors are molded into each component’s 3/8” (minimum) wall thickness. Each 4’ by 4’ plastic deck easily holds up to 800 lbs. Our large 30" diameter slides can accommodate all but the very largest adults. Tuffpad®: To add further protection for the participant and the structural pipe itself, the aluminum framework is covered with a product called Tuffpad®. This extruded polyethylene plastic closed cell foam product features (through a unique dipping process) a vinyl coating, which increases durability. It is made by Nomaco Inc. The UV stabilized vinyl coating makes pressure washing all the easier. A variety of colors add to the “curb appeal” of the final product. Saddles: All slide flumes are supported using extra thick custom-made aluminum saddles. DuraMesh® Barrier Screen: A barrier product called DuraMesh® encloses all climbing towers. It is a very strong metal mesh material that is dipped in vinyl to make it more attractive and corrosion resistant. The result is that it is impossible to fall off of or out of a our Water Slide. Hardware: All connecting hardware and concrete anchors are made of high quality marine-grade stainless steel. The slides require 15-20 gallons of water per minute per slide flume to operate properly. Our slides require much less water to operate than most fiberglass-style slides. Typically we ask the customer to run a water line to the slide and cap the line with a standard hose bib. Then we supply the hose and connectors to take the water into the slide. If you don't have a water line that will be supplying the water, we can offer a 1/2 HP pump that will pull water directly from the pool. We supply the pump and plumbing, but you are responsible for getting water to the pump. From the water line up the slide, we use a heavy duty, hard rubber hose. It is zip tied up the pipe to the top of the slide. We drill a hole in the side of the tube and install a brass 90 degree fitting in the tube so the water will shoot down the slide bed way. The hose is attached to the fitting using a hose clamp. We also apply silicone to the bottom half of the slide joints. This is done for each slide flume. We provide a “water kit” that has the fitting, hose clamps and silicone. |
